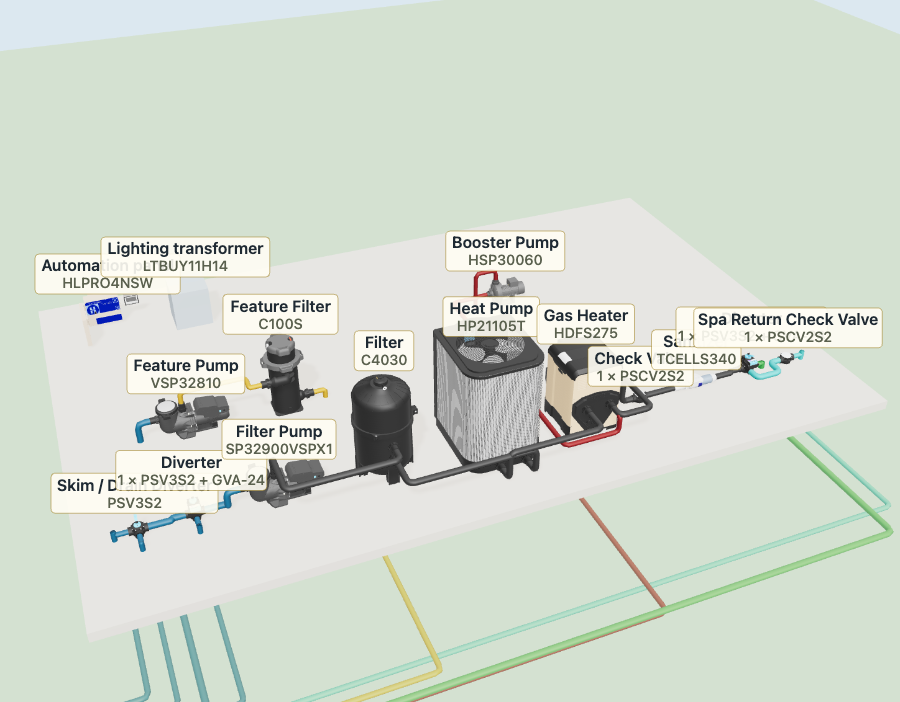

The same 3D view as the Plumbing tab, opened on the panel: the controller's own Hayward enclosure on its stand at the back of the pad with the dead front off, laid out inside as its install manual shows, and this build's wiring — the feed, each breaker's conductors (through its relay where one switches it) and every run out to its equipment under the pad. Plumbing / Electrical show or hide each layer; Panel zooms back to the panel; Dead front puts the cover back on. Positions inside follow the manual's figure and aren't to scale. A run marked ⚠ stops beside its unit because no Hayward document shows where that unit's wiring connects.
Drag to turn the view · scroll, pinch or + / − to zoom (toward the pointer) · double-click a spot to zoom in on it · right-drag, Shift-drag, two fingers, the arrow keys or the Move switch to move around · point at a label (or its unit) to read it · click a unit for its details (SKU, live flow, clearance, documents, Rotate, pipe height) · double-click a unit to pick it up and drag it on the pad (the pipes re-route; Option/Alt-drag raises or lowers a picked-up valve or salt cell) · Fit re-packs the whole pad to the smallest footprint with the fewest 90s · Plumbing / Electrical show or hide each layer — the panel on its stand at the back of the pad, its conduits under the slab out to each unit (turn on See buried pipe to see them through the slab).
